PF-UB/EFV

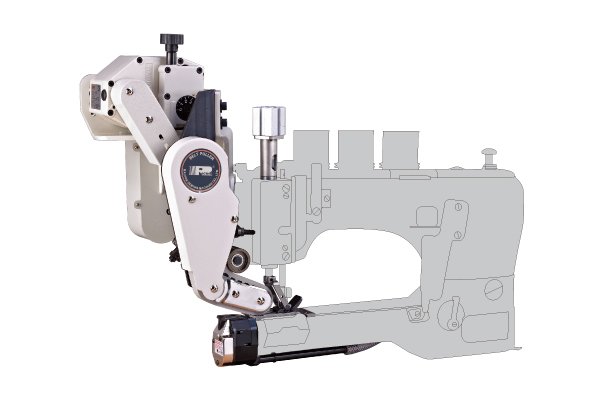

PF-UB UNION SPECIAL 35800 PF-UB/ EFV/AF Belt type puller for Extra Heavy Duty (Gauge Set: 9/64″x9/64″ or 1/8″x1/8″ ) Adaptable machine Model: U.S 3580 0 JUKI MS3580 PEGASUS FV2 YAMATO DT-30 KANSAI SX6803 * Not suitable on Puller device PULLER SPECIFCATION ADAPTABLE MACHINE FEED-OFF-ARM DRIVEN WAY UPPER ROLLER TRANSMISSION TYPE P-2 MIN. DISTANCE BETWEEN ROLLER and NEEDLE 32 mm BELT TYPE ( *Regular) 210XL17 PULLER LENGTH 0.3~4.5 mm SEWING MAX. SPEED (Continuous/Intermittent) 3000/4500 POWER AC 100~240V
